BIOCH100 DRIVE

Petrol

Professional
Diameter
100 mm
Engine
VANGUARD Briggs & Stratton 14 HP - 408 cc - integrated tank
Start
Electric
Hourly output
10-15 m3/h
Price
€ 16.490 VAT included
Contact a GRIN expert
Find your nearest dealer
TEST DRIVE BIOCH
grin-made-in-italy
GRIN-Eco Friendly Garden-EN

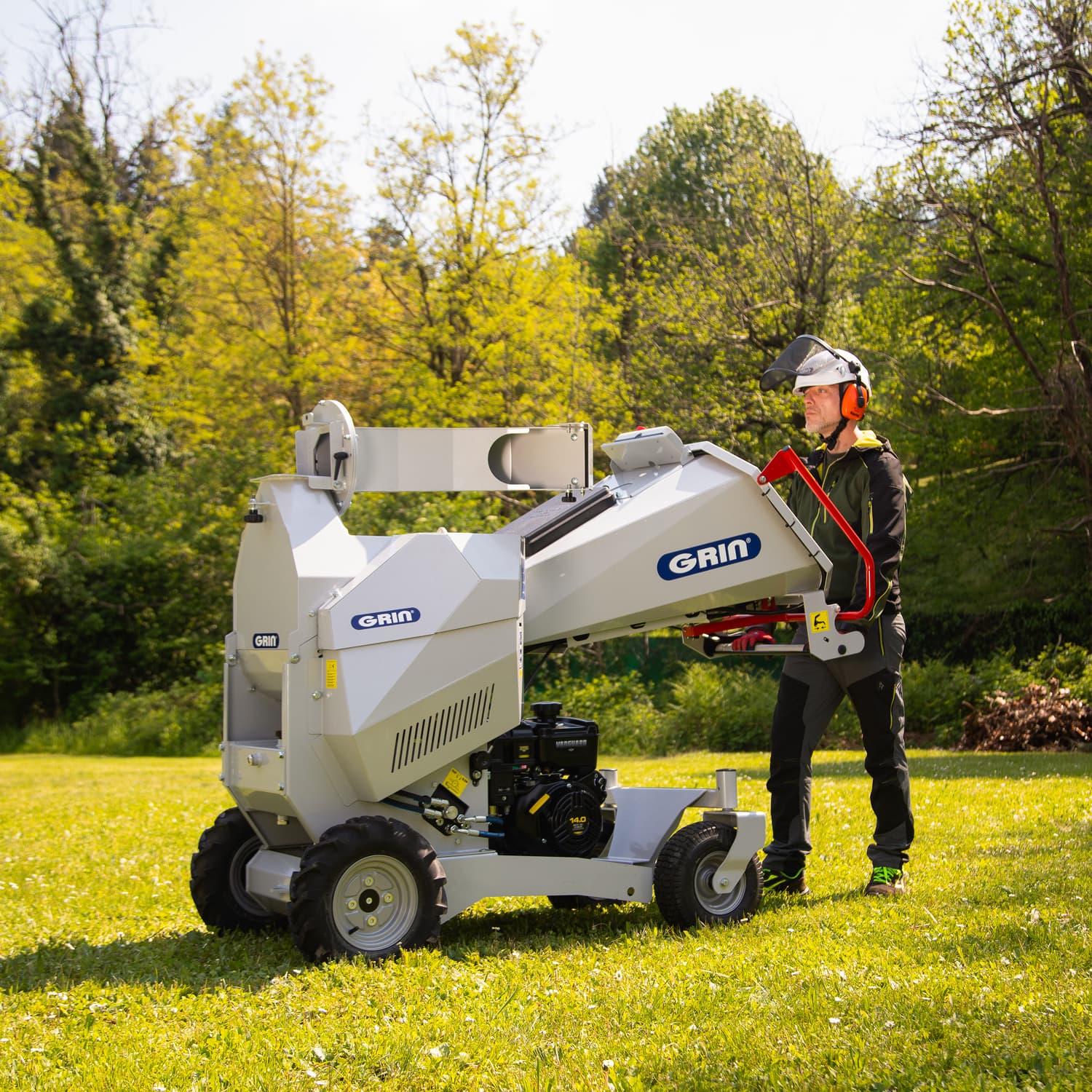

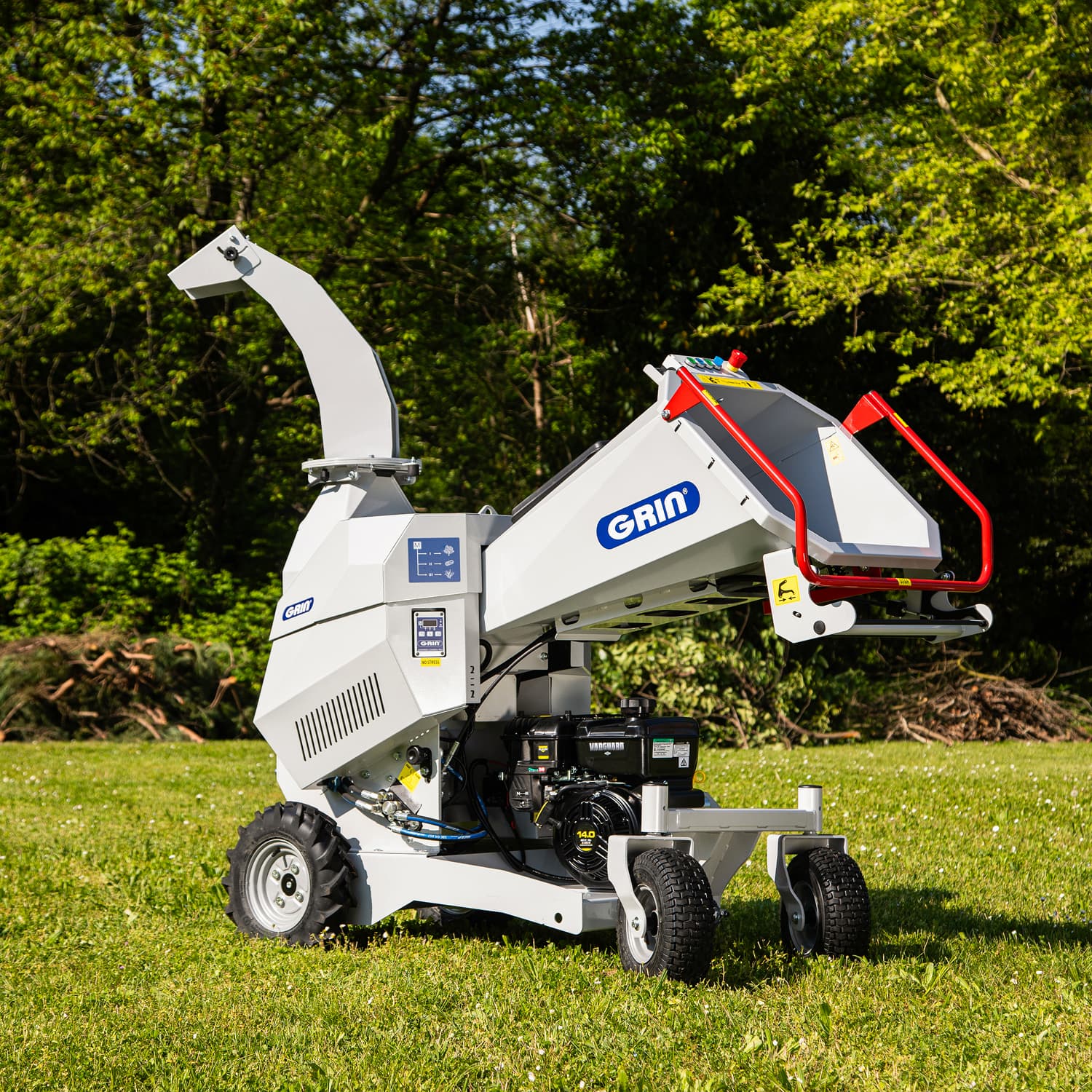

Grin BIOCH100 DRIVE is the ideal shredder for pruning experts who need a machine suitable for all types of pruning, powerful and rapid in shredding, but also with compact dimensions for an easy and safe handling.

BIOCH100 DRIVE is equipped with a hydraulic loading roller with adjustable speed and an antistress PRO system, that adjusts the loading of the material to be processed and allows different settings depending on the material type.

The heart and innovation of BIOCH100 DRIVE is the GRIN ULTRA CUT system, a cutting system with closed cylindrical cutterhead that allows to maximize the power of the Vanguard engine while also minimizing its consumption. The working speed and the high-quality chipping are much appreciated.

The DRIVE version, self-propelled with drive wheels, allows an easy handling without damaging the lawn.

The compact dimensions, only 79 cm wide, allow the machine to be easily driven in tight spaces as through garden gates.
Once the adjustable discharge chute is folded, BIOCH100 DRIVE can be safely loaded even on trucks of small dimensions.

BIOCH100 DRIVE

Cutting system
GRIN ULTRA CUT system with closed cutterhead
Hopper
Compact hopper with maxi inlet
Loading roller
Hydraulic steel toothed loading roller with adjustable speed and anti-stress PRO control unit
Discharge System
Swiveling at 270° – adjustable deflector – discharge height 197 cm - foldable without tools
Handling
Self-propelled drive wheels
Engine
VANGUARD Briggs & Stratton 14 HP - 408 cc - integrated tank
Start
Electric
Size in CM
IN ACTION: 240 L X 79 W x 197 H - TRANSPORT: 185 L x 79 W x 150 H
Weight
411 Kg
Hourly output
10-15 m3/h
GRIN-Eco Friendly Garden-EN

THE GRIN ECO-FRIENDLY GARDEN

Save time and effort

The 3Rs of Sustainability:  RECYCLE | REUSE | REDUCE

Read More
tramoggia

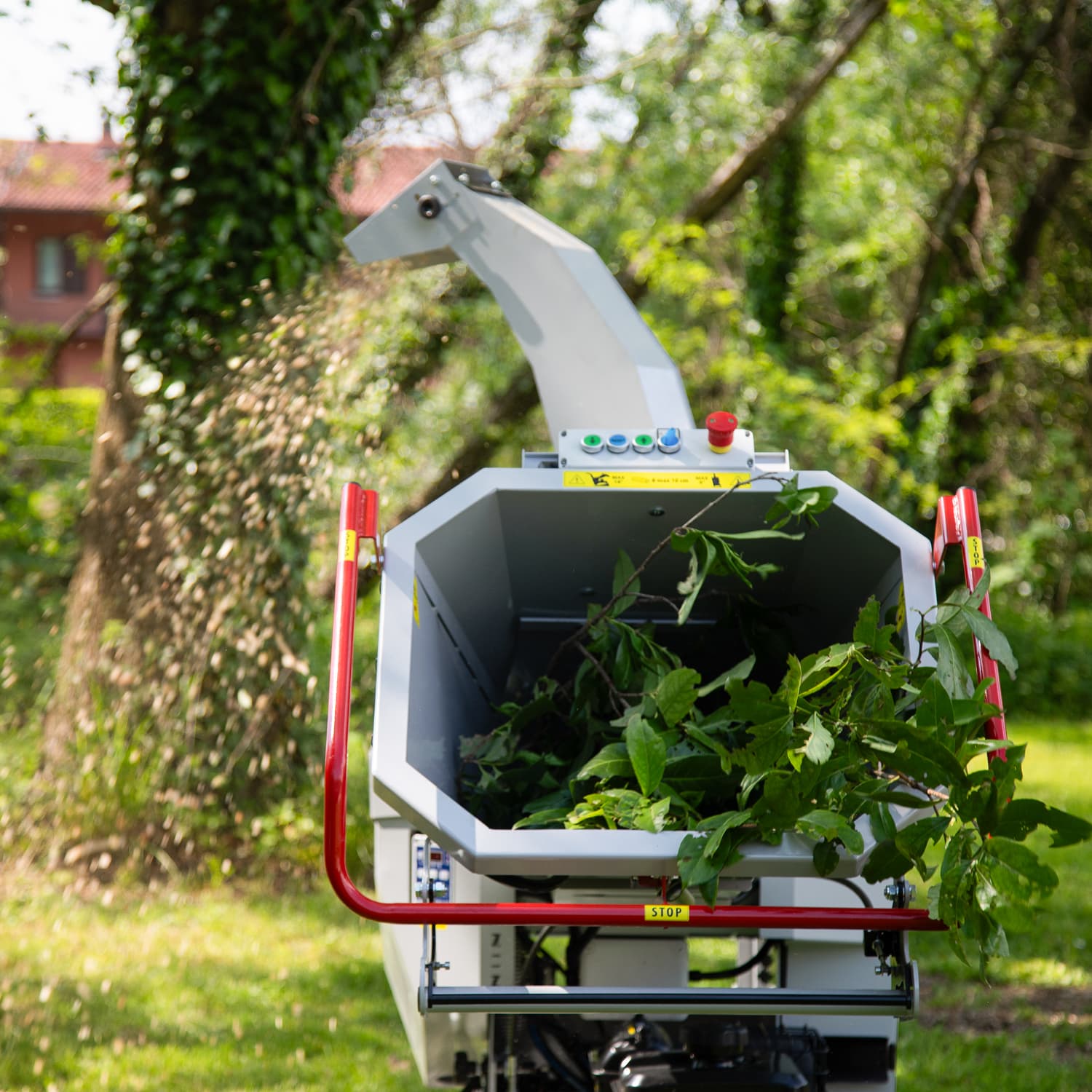

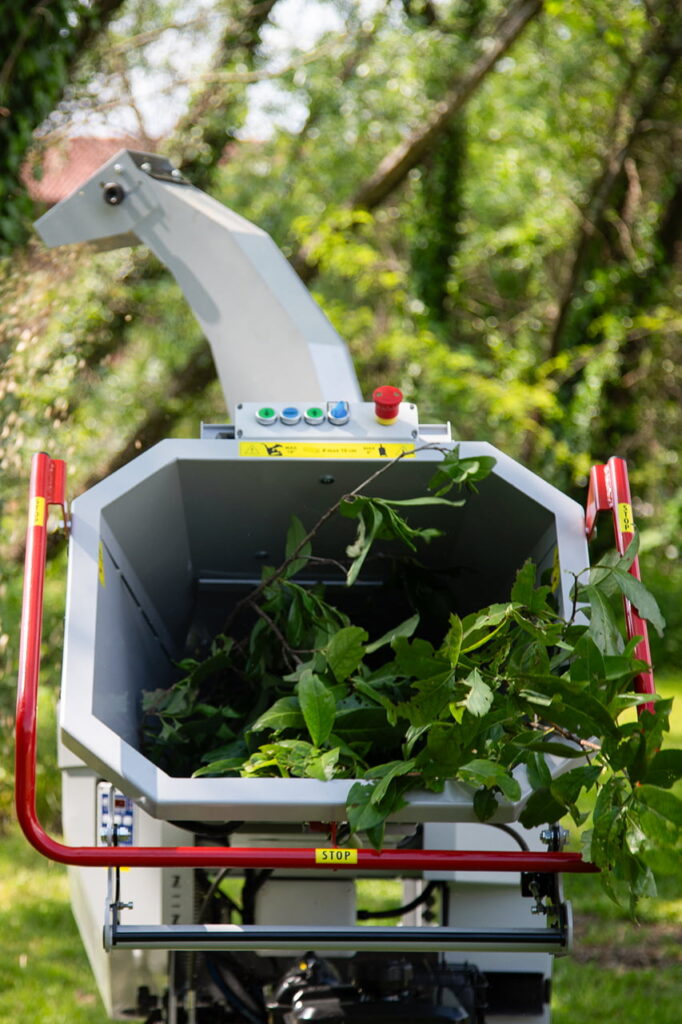

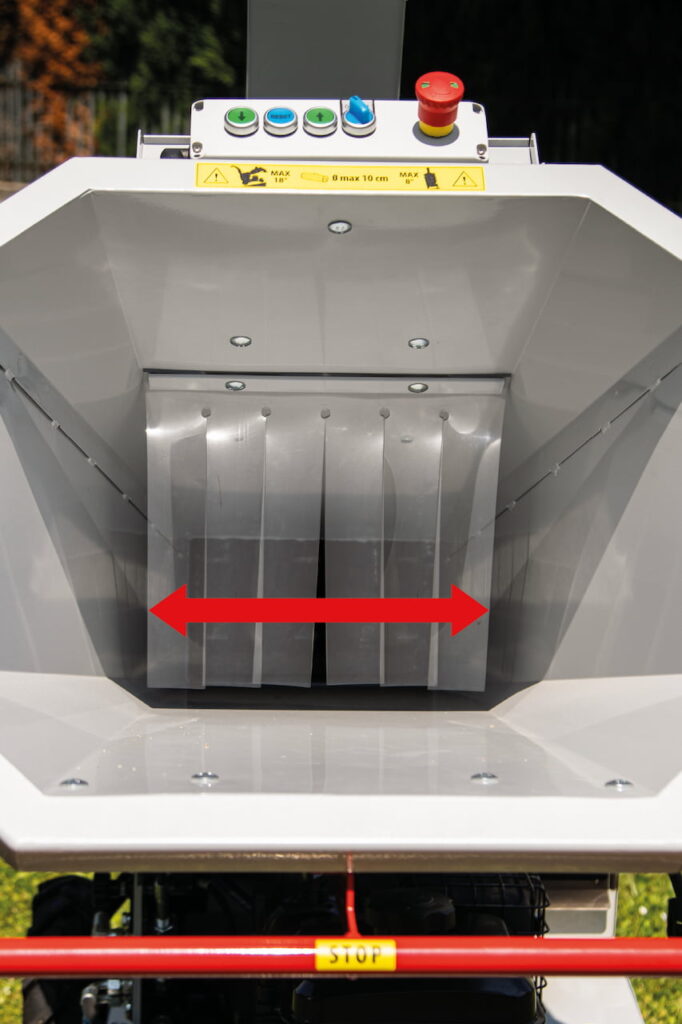

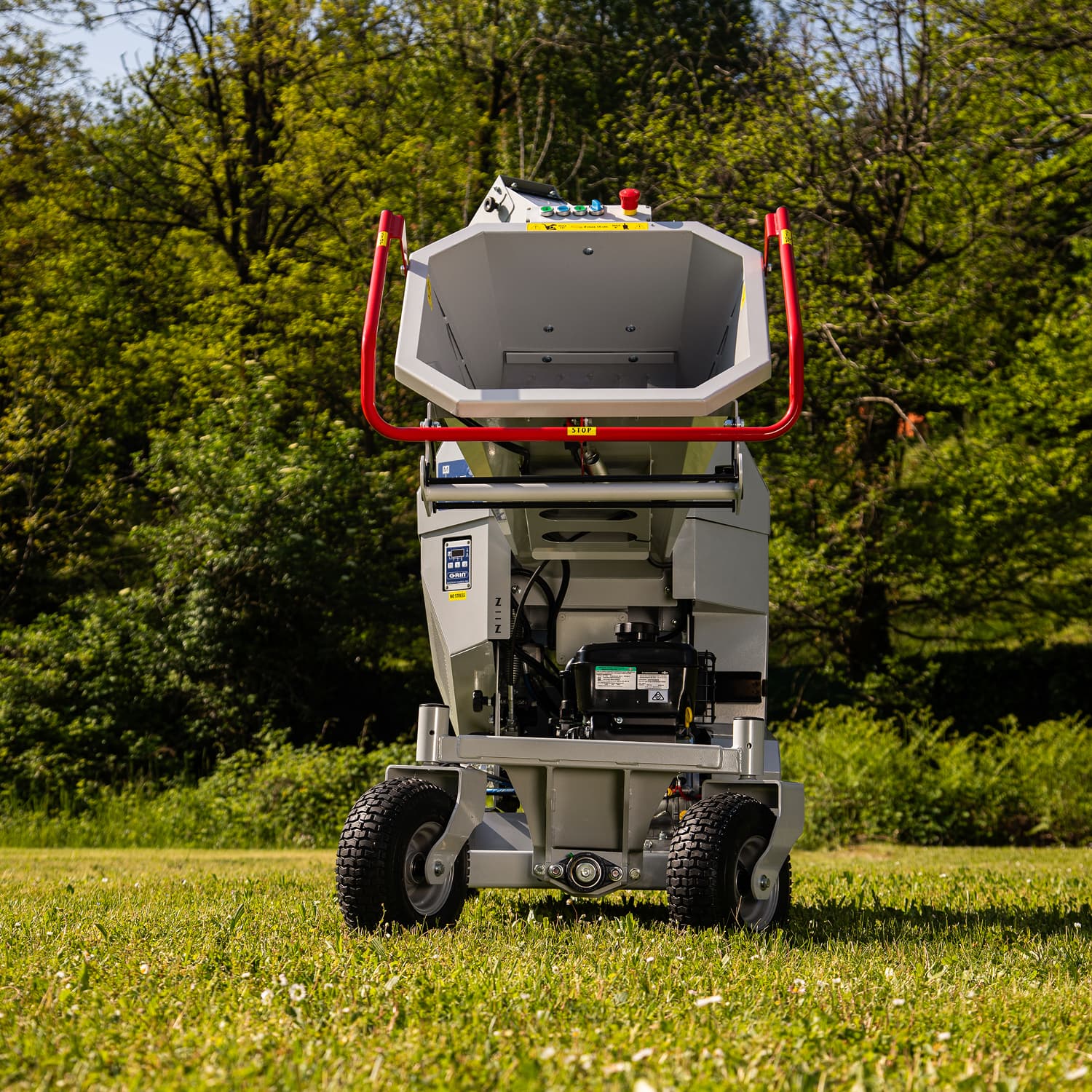

Compact hopper with maxi inlet

A convenient and large hopper allows the loading of bulky and leafy material. Entering the shredding system, the branches pass through a 30 cm wide inlet, that allows an extreme working speed.
rullo-highlights-bioch

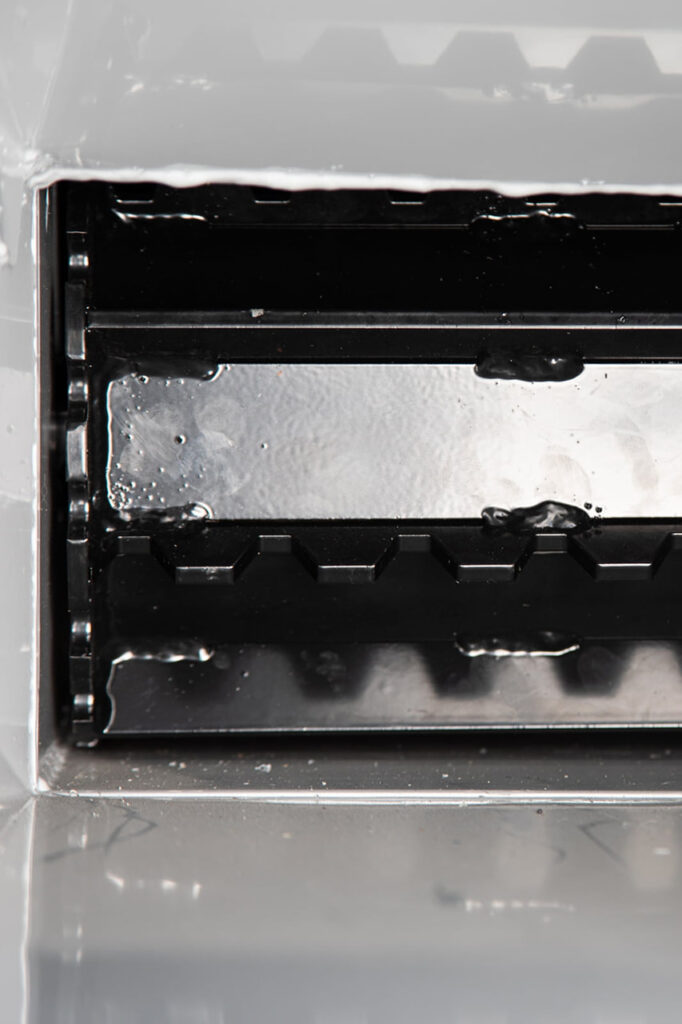

Hydraulic loading roller with adjustable speed

The toothed loading roller allows the transport of the material from the hopper into the GRIN shredding system. The roller is made of very resistant steel and powered by a high-performance hydraulic pump. An external control allows you to change the speed in order to adjust the amount of material to be processed according to the type.
BIOCH100 DRIVE - Highlights centralina antistress

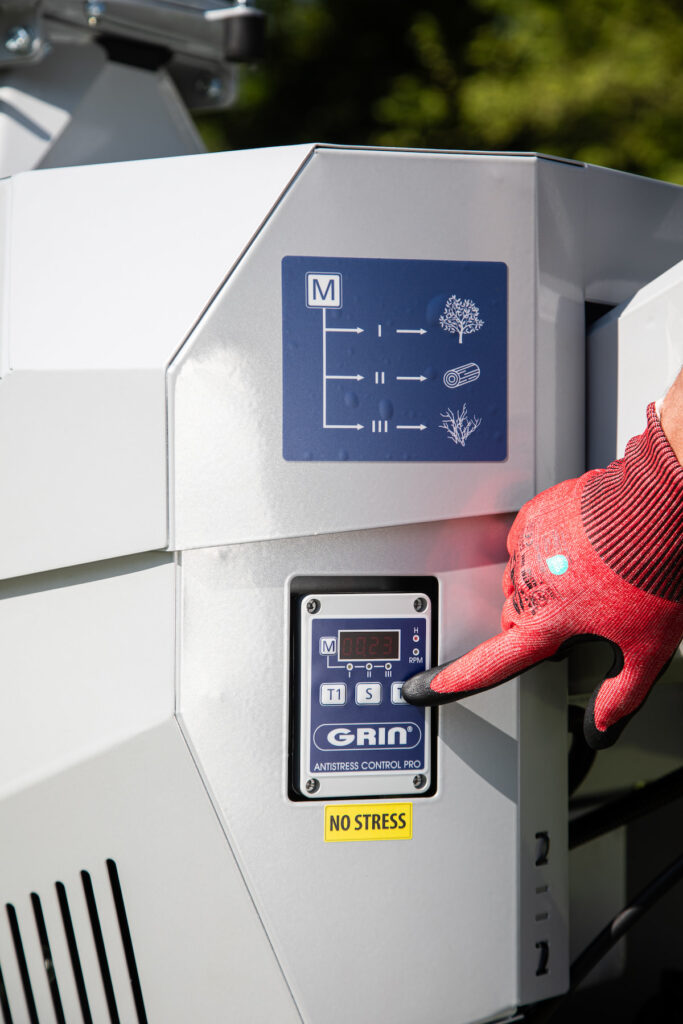

GRIN ANTIstress PRO system

The movement of the roller is regulated by the GRIN ANTIstress PRO system: it automatically manages the backward movement of the roller, allowing the material to move backward for a few centimeters and then resume the chopping process a few seconds later. This electronic control is essential to maintain a high working speed even when the machine is overloaded. The GRIN ANTIstress PRO system also allows 3 different settings depending on the material that is going to be processed.
antistress

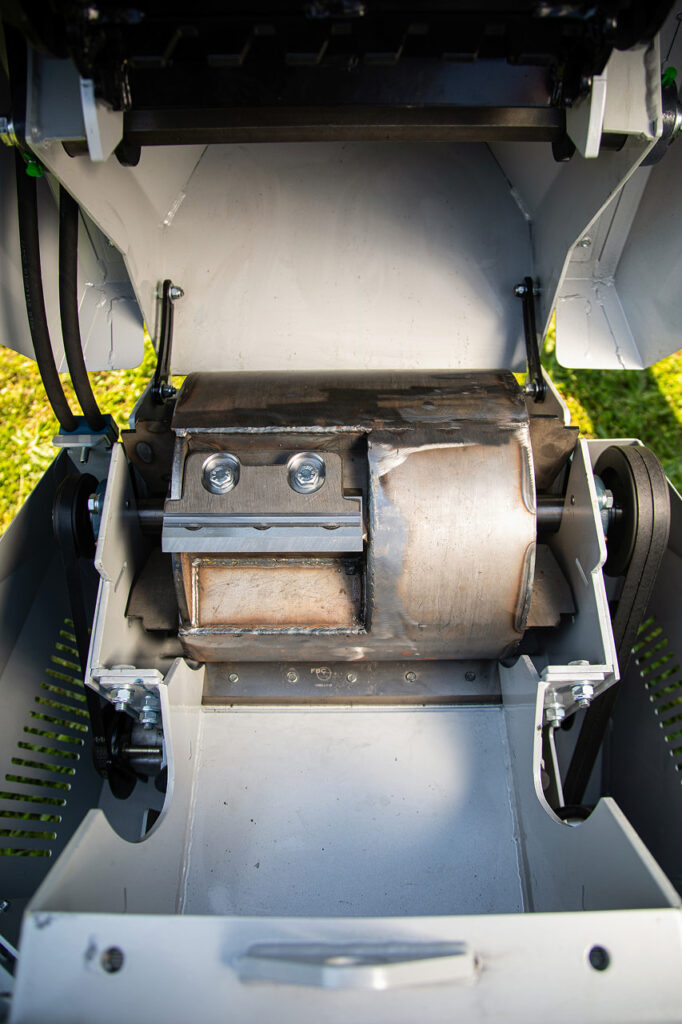

GRIN ULTRACUT cutting system

The GRIN ULTRACUT cutting system is the heart of the machine. It consists of a set of knives placed on a closed cylindrical cutterhead. On the outer part, some radial blades are designed to generate the airflow needed to eject the processed material. The GRIN ULTRACUT cutterhead: - takes full advantage of the engine power - decreases clogging caused by overloading - reduces the consumption of the machine - guarantees incredible working speed
sportello-bioch

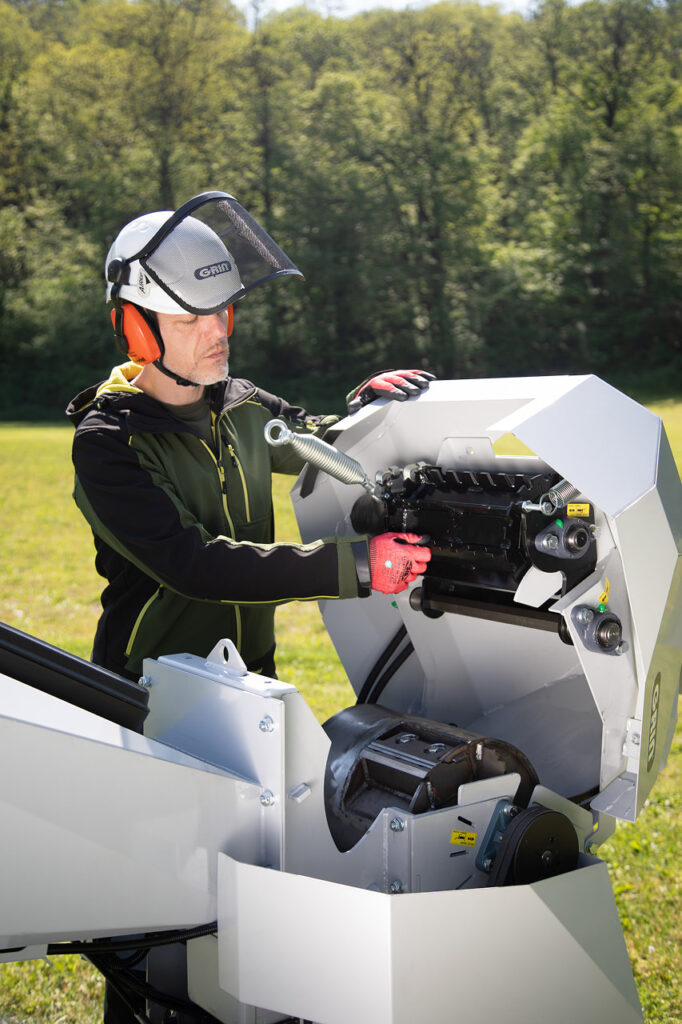

Opening flap for maintenance

It only takes a few seconds to open the GRIN BIOCH100 DRIVE flap that allows you to access the heart of the machine and quickly perform ordinary and extraordinary maintenance. Thanks to this system the operator has access to the cutting apparatus for blades maintenance but also to the counter-blade for adjustments. Moreover, it is possible to clean it in a fast, comfortable and safe way.
ingombri

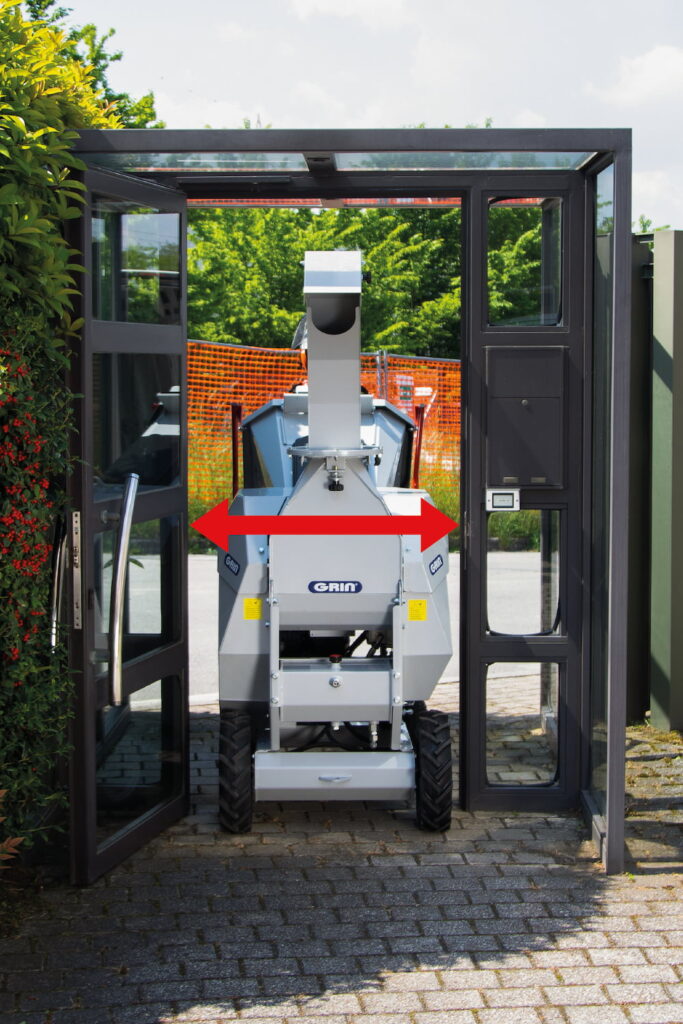

79 cm to access all gardens

The dimensions of BIOCH100 DRIVE allow the machine to access all gardens. Only 79 cm wide; it is easy to pass through pedestrian gates or tight spaces, driving the machine to the pruning area.
POCO INGOMBRANTE NEL TRASPORTO

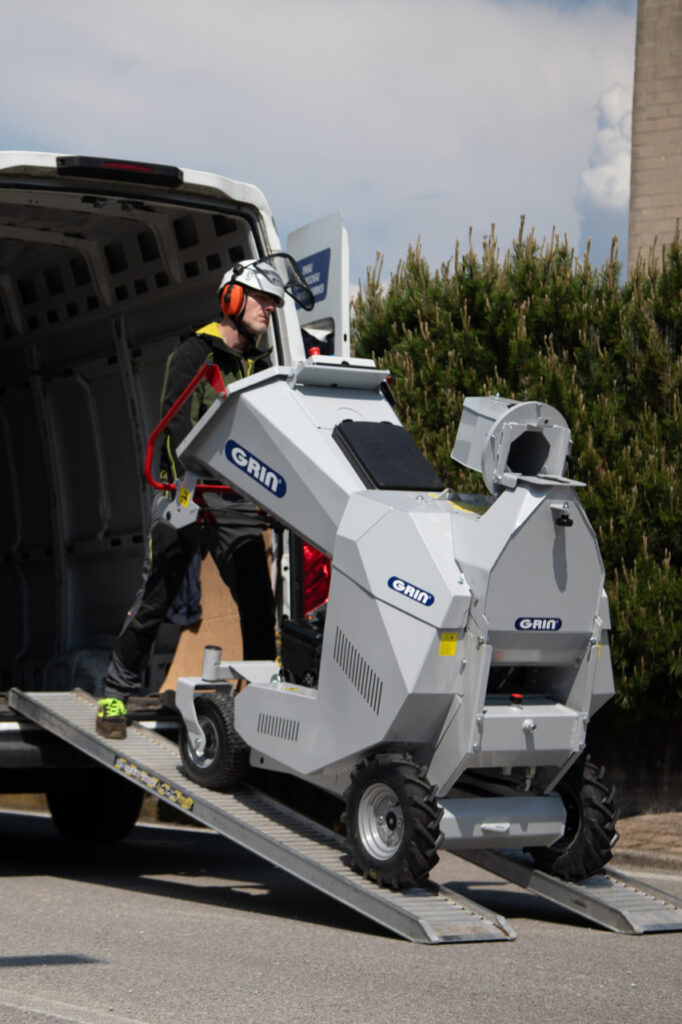

Space-saving transport

Folding the discharge chute with a quick command and thanks to its dimensions of 185 L x 79 W x 150 H cm (with folded discharge chute), GRIN BIOCH100 DRIVE can also be loaded on small vans or save space on bigger trucks.
ruote-bioch

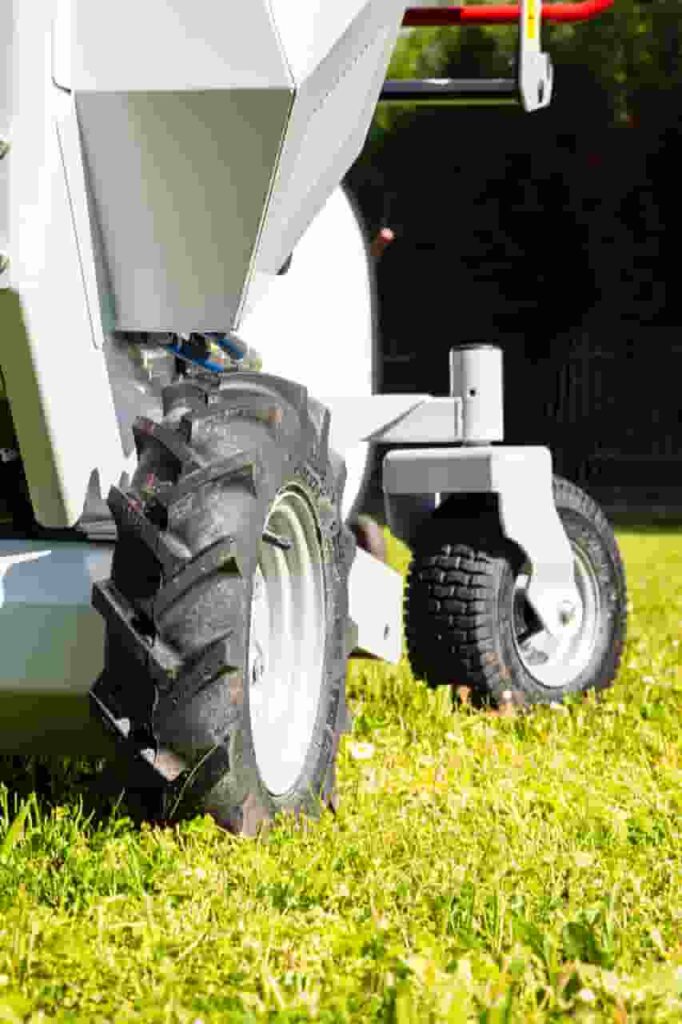

Drive tractor wheels

The tractor wheels of BIOCH100 DRIVE are equipped with hydraulic engines. The operator can start the self-propelled unit with two levers placed under the hopper that engage the forward or the reverse gear. Compared to shredders with tracks, the wheels are gentler on lawn but allow anyway a good performance on slopes.
ruote-staffa basculante

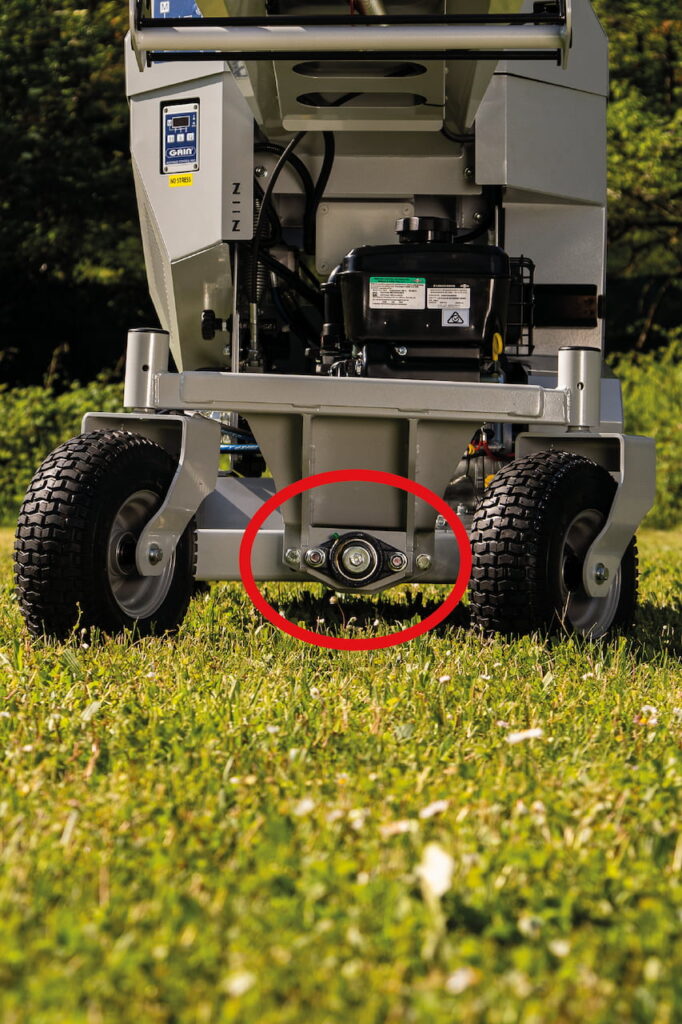

Pivoting wheels with swinging bracket

Thanks to the pivoting wheels, it is possible to move the machine easily. They are mounted on a swinging bracket to adapt to the uneven terrain and increase safety and effectiveness in traction. A lock allows to fix the movement of the pivoting wheel during transport or loading onto the van.
