A convenient and large hopper allows the loading of bulky and leafy material. Entering the shredding system, the branches pass through a 30 cm wide inlet, that allows an extreme working speed.

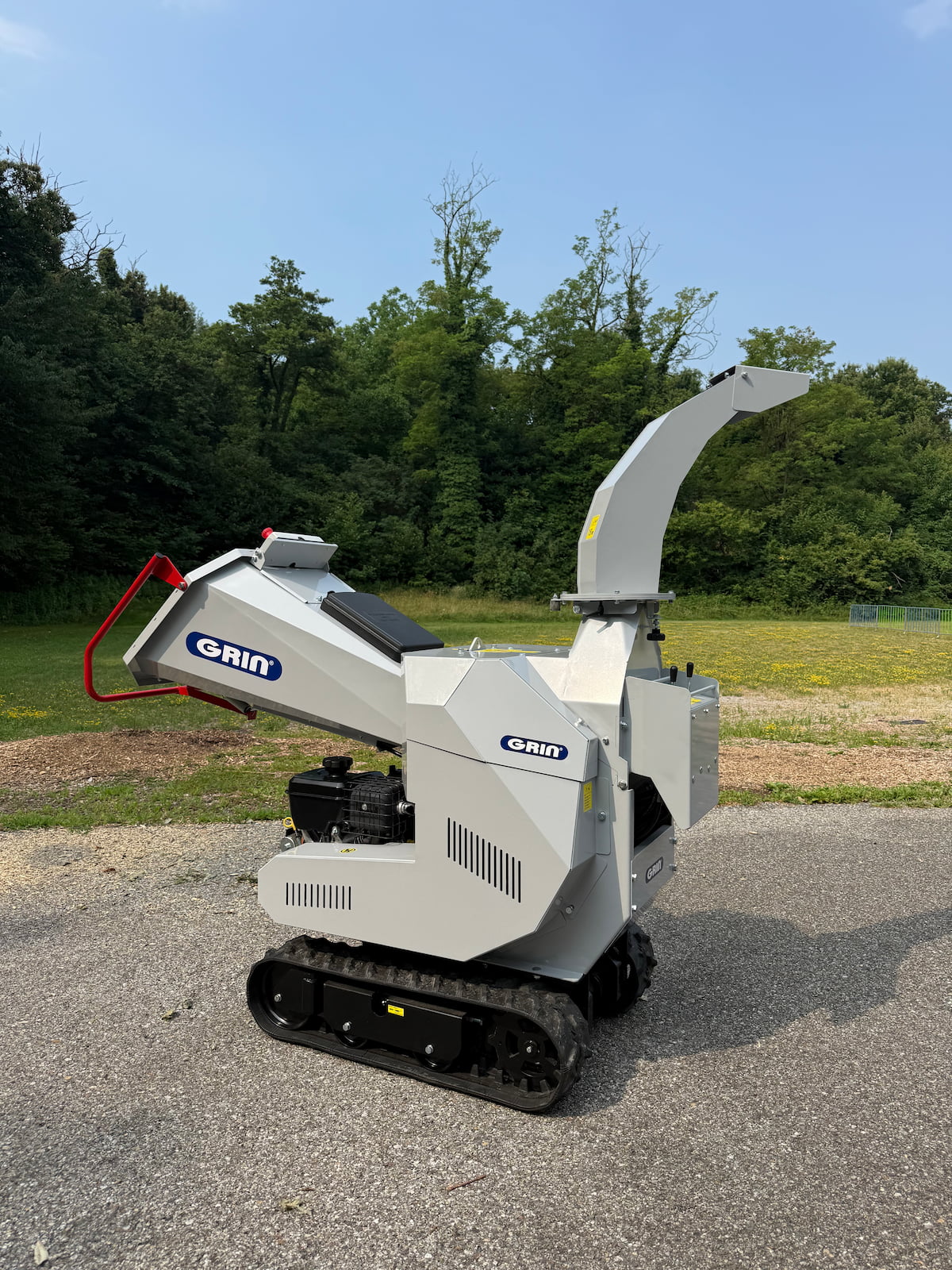

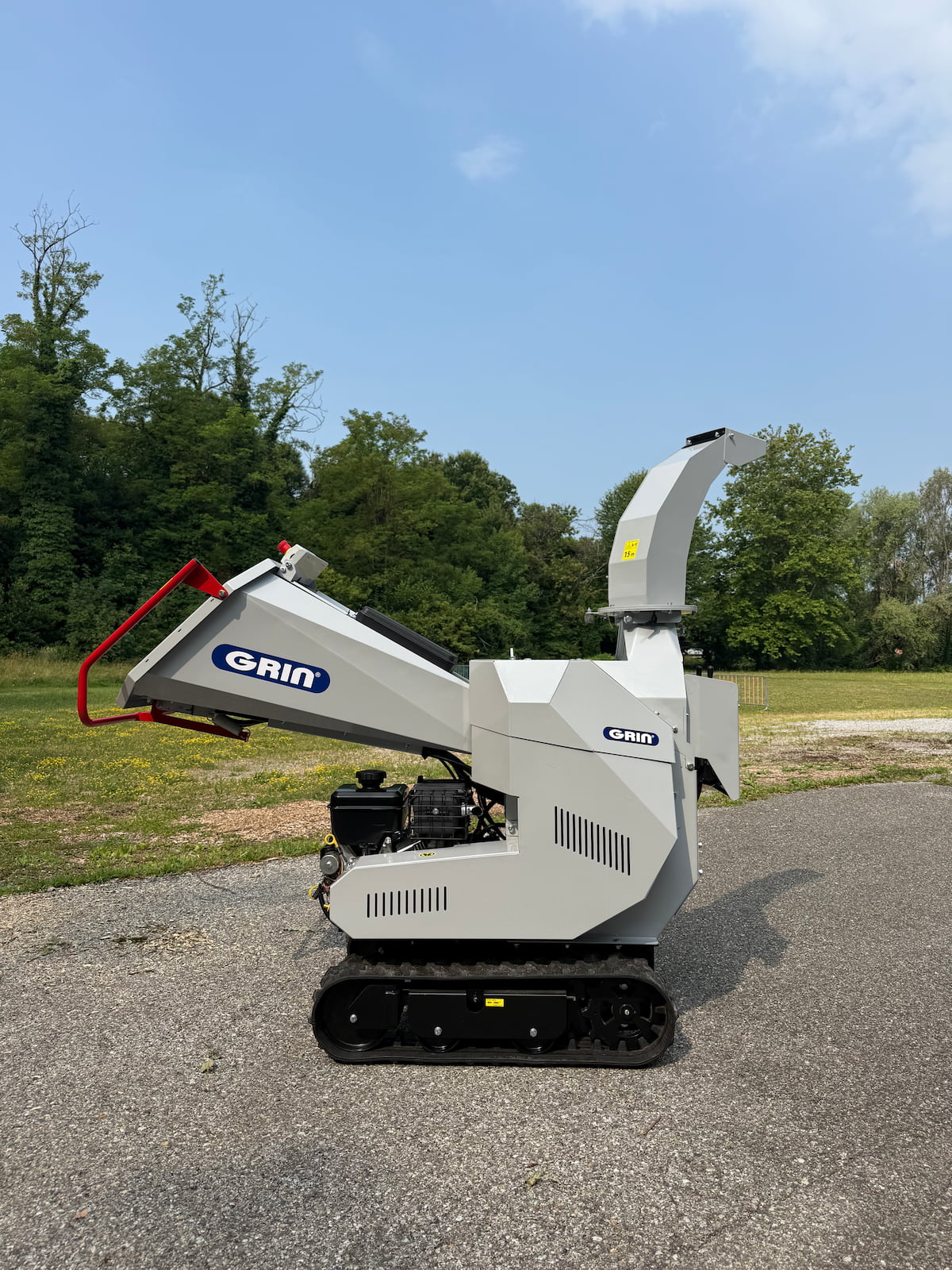

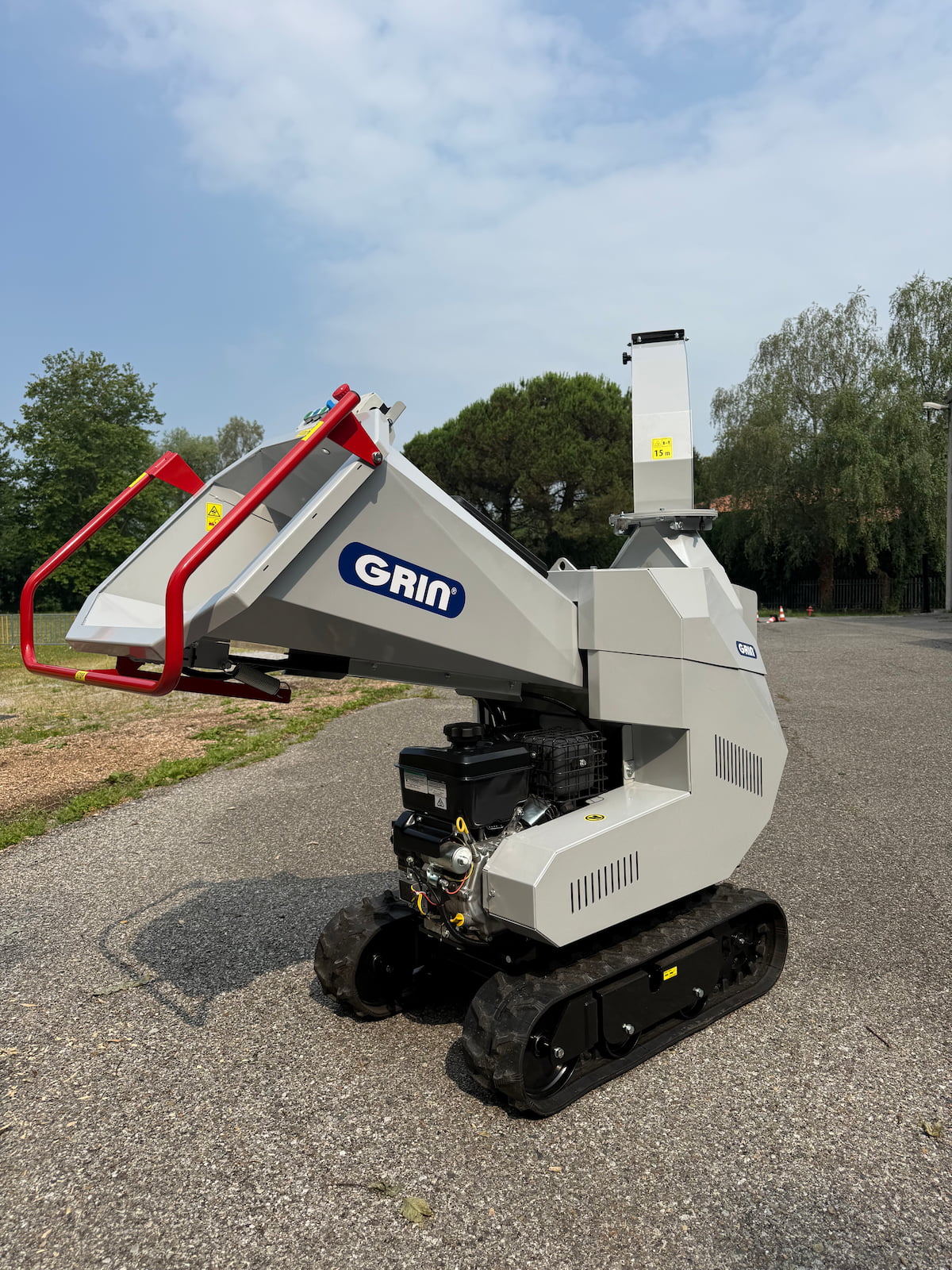

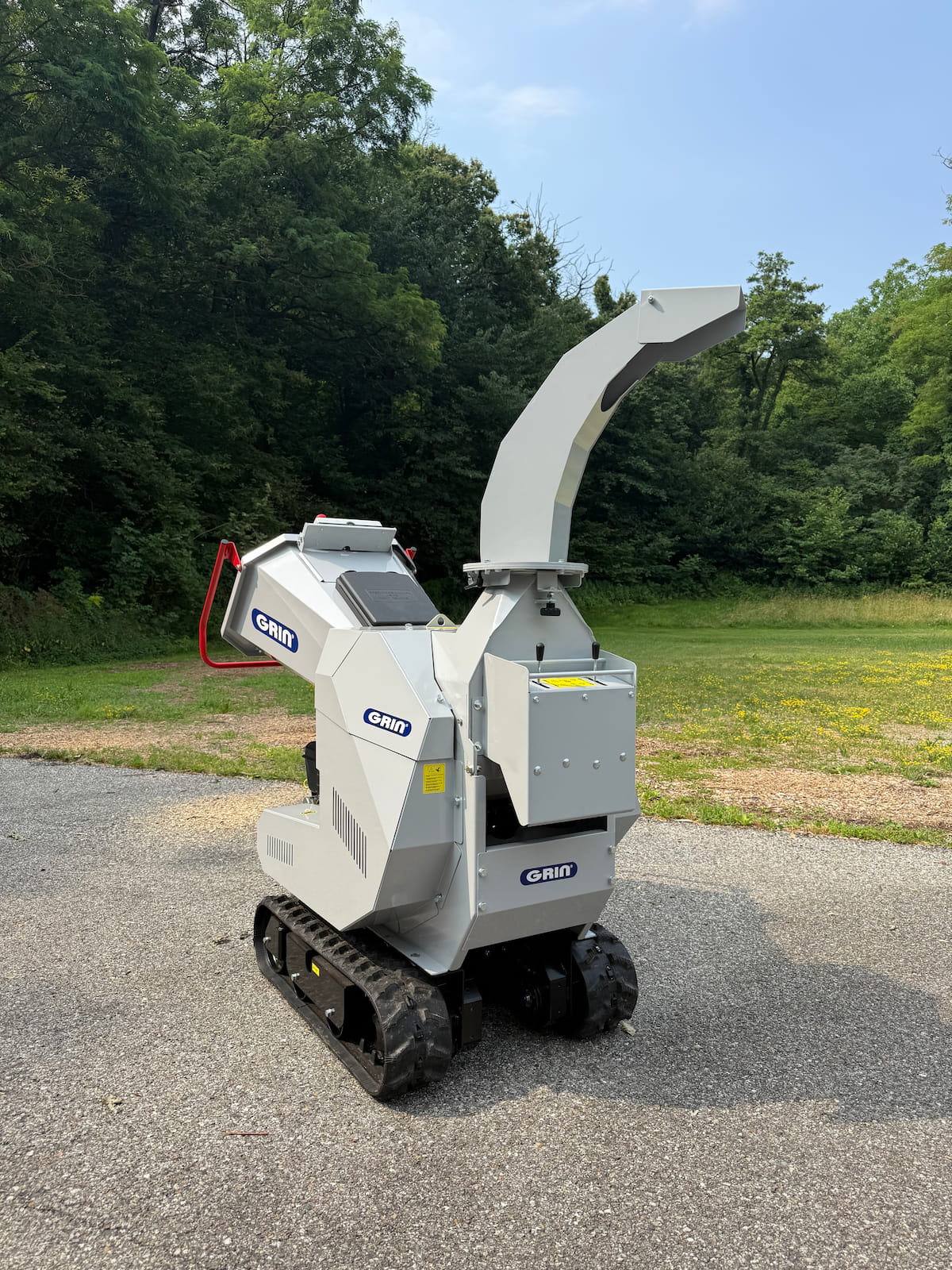

BIOCH100 CROSS
BIOCH100 CROSS
Petrol
Professional
Diameter
100 mm
Engine
VANGUARD Briggs & Stratton 14 HP - 408 cc - integrated tank
Start
Electric
Hourly output
10-12 m3/h
Price
Discover the price
Grin BIOCH100 CROSS is the ideal shredder for pruning experts who need a machine suitable for all types of pruning, powerful and rapid in shredding, but also with compact dimensions for an easy and safe handling.
BIOCH100 CROSS is equipped with a hydraulic loading roller with adjustable speed and an antistress PRO system, that adjusts the loading of the material to be processed and allows different settings depending on the material type.
The heart and innovation of BIOCH100 CROSS is the GRIN ULTRA CUT system, a cutting system with closed cylindrical cutterhead that allows to maximize the power of the Vanguard engine while also minimizing its consumption. The working speed and the high-quality chipping are much appreciated.
Tracks allow to move BIOCH100 CROSS on uneven terrain, granting performance and safety even on extreme slopes.
The compact dimensions, only 79 cm wide, allow the machine to be easily driven in tight spaces as through garden gates.
Once the adjustable discharge chute is folded, BIOCH100 CROSS can be safely loaded even on trucks of small dimensions.
BIOCH100 CROSS
Cutting system
GRIN ULTRA CUT system with closed cutterhead
Hopper
Compact hopper with maxi inlet
Loading roller
Hydraulic steel toothed loading roller with adjustable speed and anti-stress PRO control unit
Discharge System
Swiveling at 270° – adjustable deflector – discharge height 197 cm - foldable without tools
Handling
Hydraulic tracks (Length 108 cm – Width 72 cm)
Engine
VANGUARD Briggs & Stratton 14 HP - 408 cc - integrated tank
Start
Electric
Size in CM
IN ACTION: 240 L X 79 W x 197 H - TRANSPORT: 185 L x 79 W x 150 H
Weight
510 Kg
Hourly output
10-12 m3/h
THE GRIN ECO-FRIENDLY GARDEN
Save time and effort
The 3Rs of Sustainability:Â RECYCLE | REUSE | REDUCE

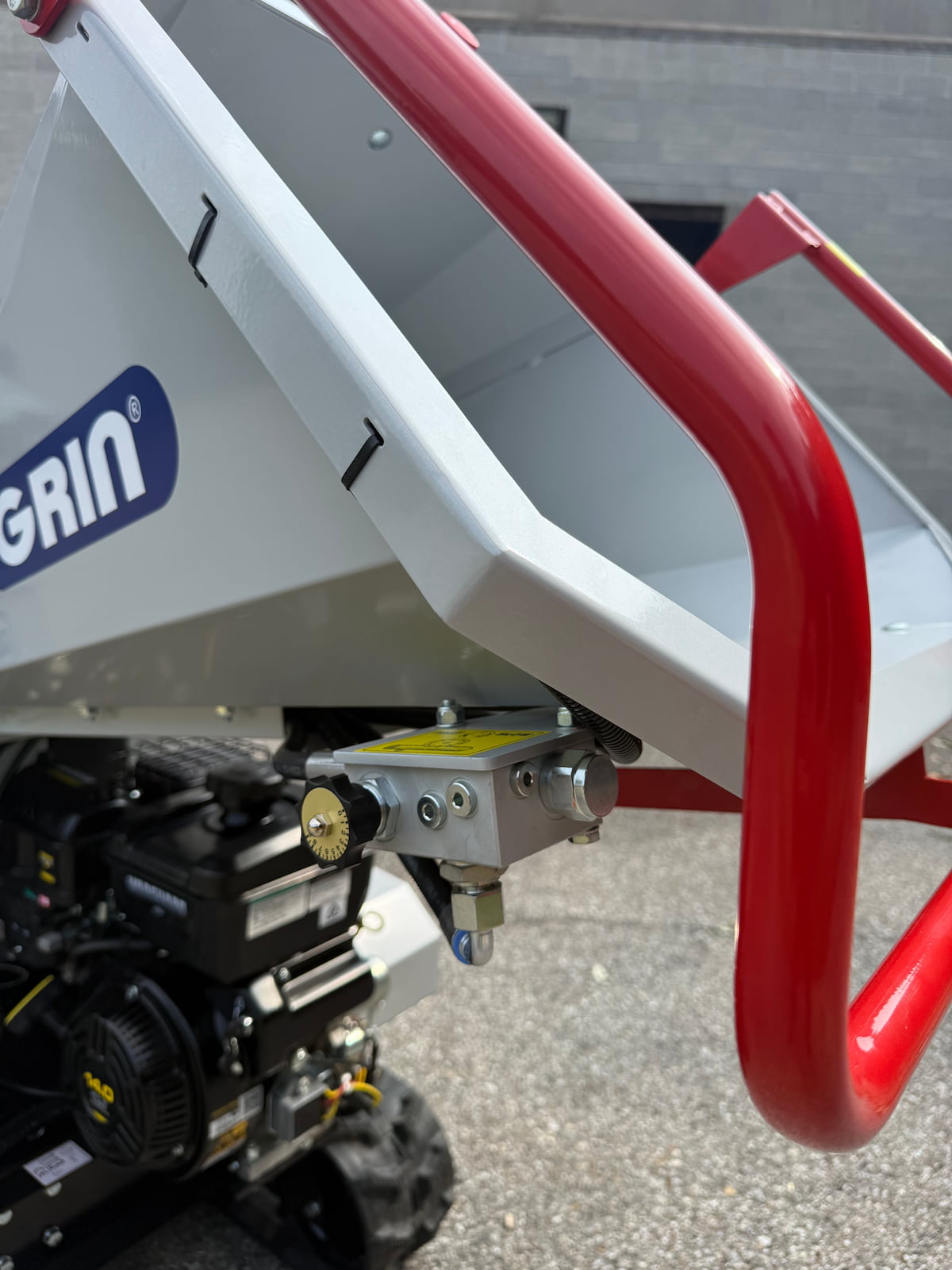

Compact hopper with maxi inlet
Hydraulic loading roller with adjustable speed
The toothed loading roller allows the transport of the material from the hopper into the GRIN shredding system.
The roller is made of very resistant steel and powered by a high-performance hydraulic pump.
An external control allows you to change the speed in order to adjust the amount of material to be processed according to the type.
GRIN ANTIstress PRO system
The movement of the roller is regulated by the GRIN ANTIstress PRO system: it automatically manages the backward movement of the roller, allowing the material to move backward for a few centimeters and then resume the chopping process a few seconds later.
This electronic control is essential to maintain a high working speed even when the machine is overloaded.
The GRIN ANTIstress PRO system also allows 3 different settings depending on the material that is going to be processed.
GRIN ULTRACUT cutting system
The GRIN ULTRACUT cutting system is the heart of the machine. It consists of a set of knives placed on a closed cylindrical cutterhead.
On the outer part, some radial blades are designed to generate the airflow needed to eject the processed material.
The GRIN ULTRACUT cutterhead:
– takes full advantage of the engine power
– decreases clogging caused by overloading
– reduces the consumption of the machine
– guarantees incredible working speed
Opening flap for maintenance
It only takes a few seconds to open the GRIN BIOCH100 DRIVE flap that allows you to access the heart of the machine and quickly perform ordinary and extraordinary maintenance.
Thanks to this system the operator has access to the cutting apparatus for blades maintenance but also to the counter-blade for adjustments. Moreover, it is possible to clean it in a fast, comfortable and safe way.

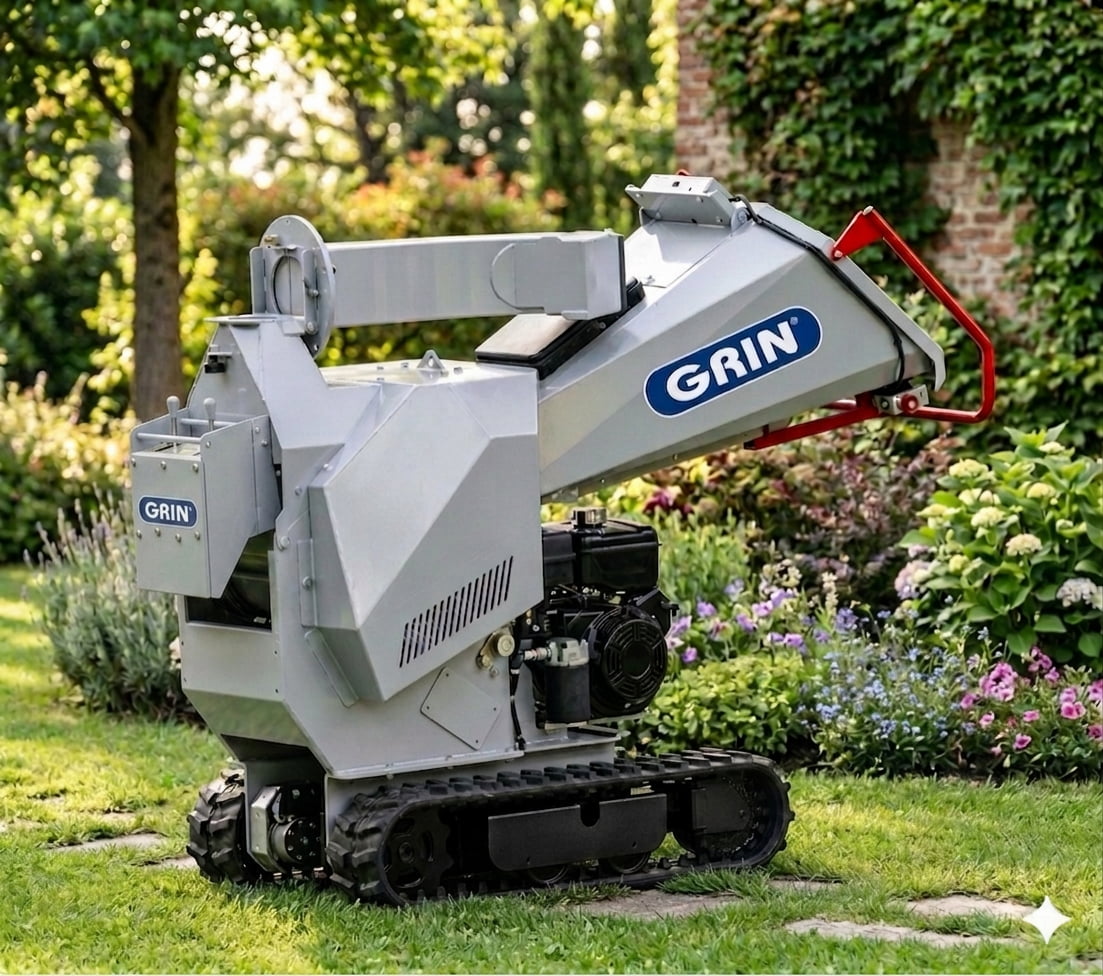

79 cm to access all gardens
The dimensions of BIOCH100 DRIVE allow the machine to access all gardens. Only 79 cm wide; it is easy to pass through pedestrian gates or tight spaces, driving the machine to the pruning area.
Space-saving transport
Folding the discharge chute with a quick command and thanks to its dimensions of 185 L x 79 W x 150 H cm (with folded discharge chute), GRIN BIOCH100 DRIVE can also be loaded on small vans or save space on bigger trucks.

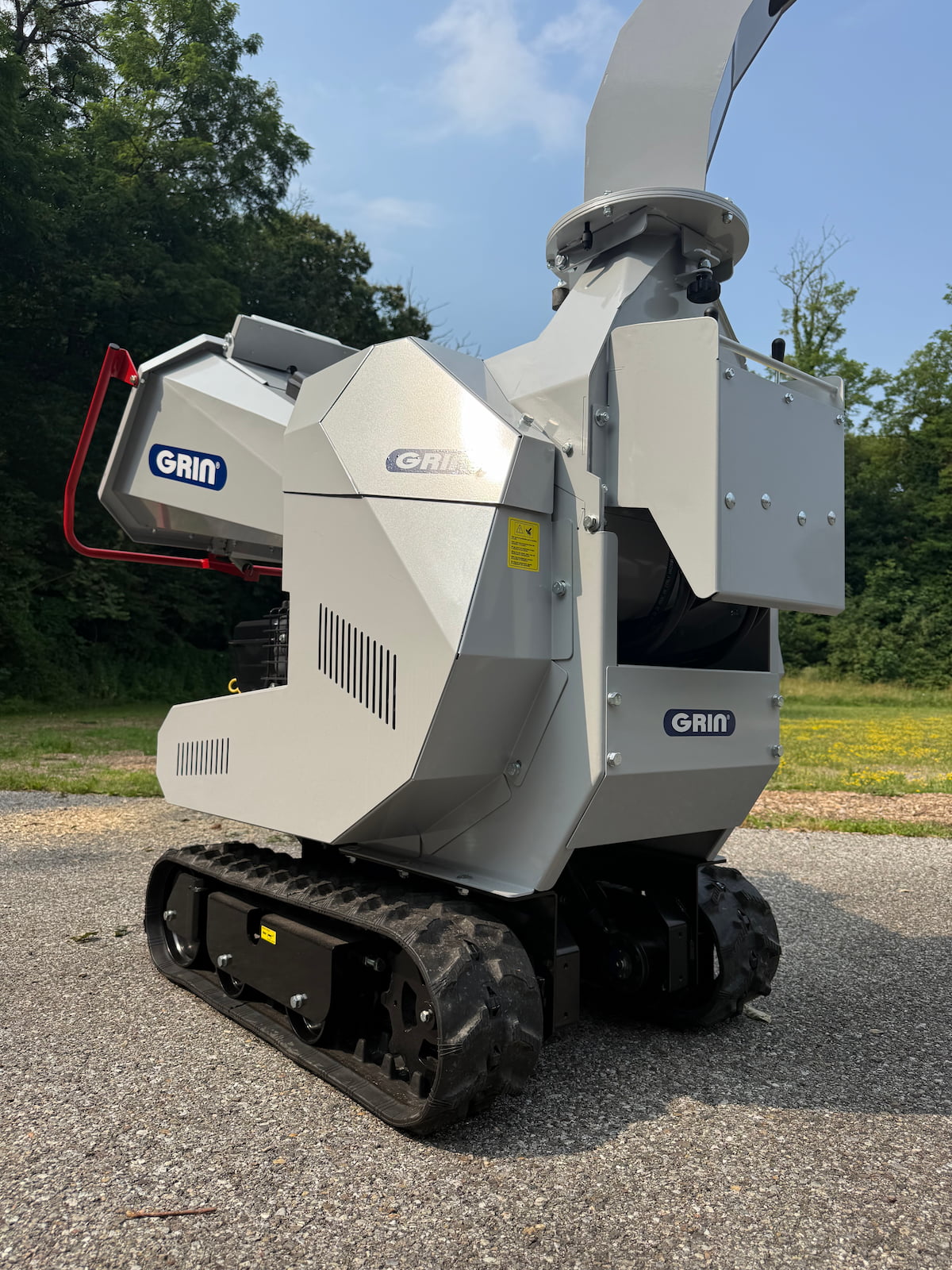

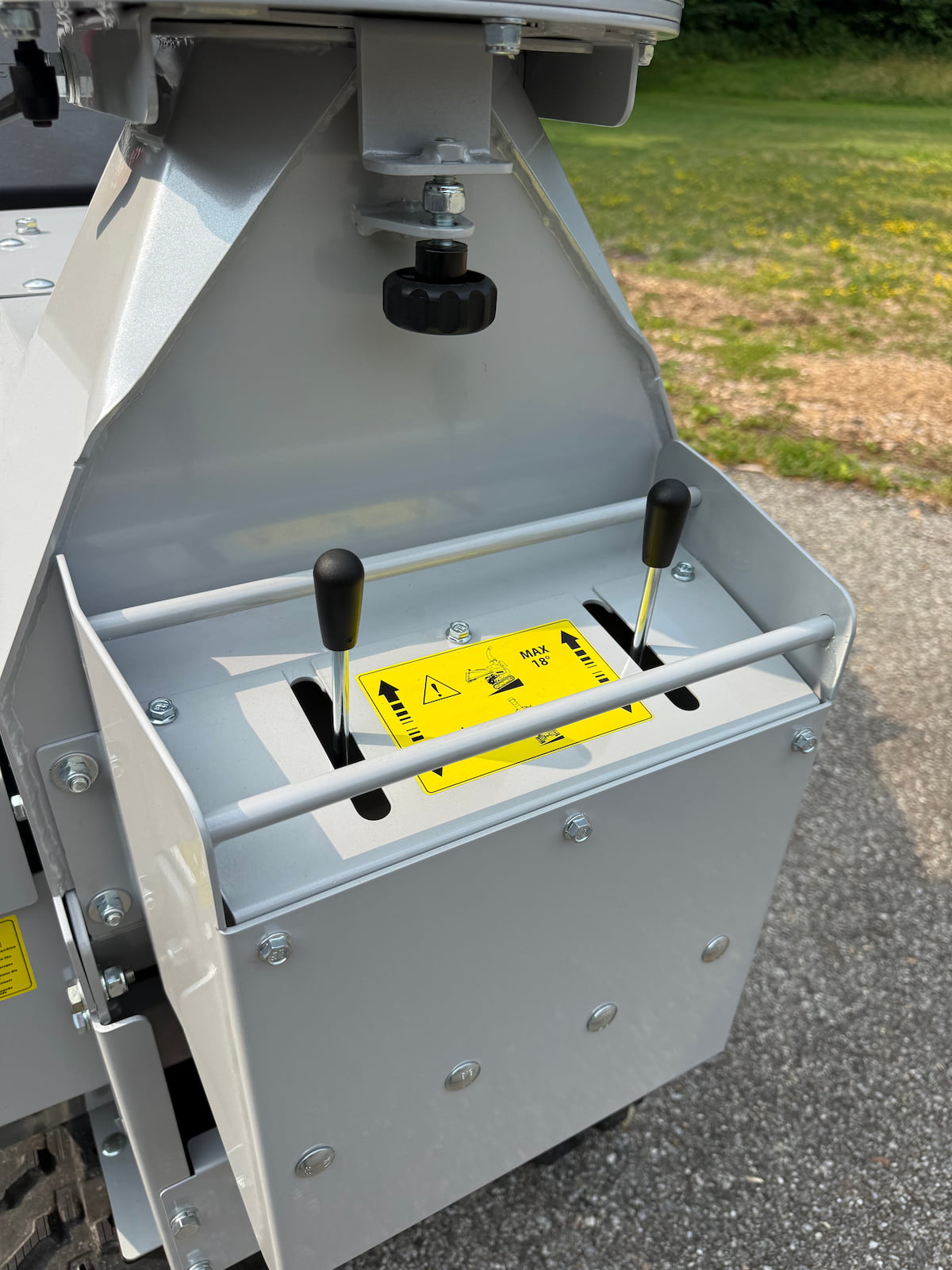

Tracks for all terrains
Tracks allow to move BIOCH100 CROSS on uneven terrain , granting performance and safety even on extreme slopes.

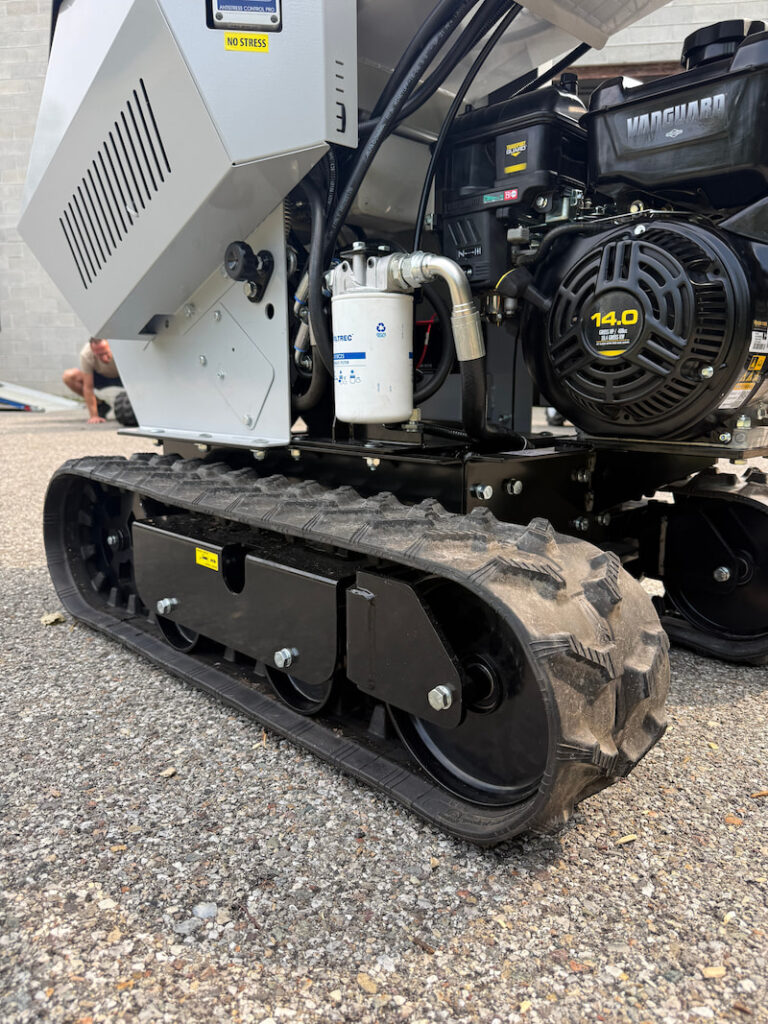

Greater stability
The dedicated tracks, different from power barrows, make the machine stable and avoid overturning.
They are 1080 mm long and 720 mm wide.
The tracks are powered by high-quality hydraulic motors.
